Omni-XR Antennas

HIGH PERFORMANCE

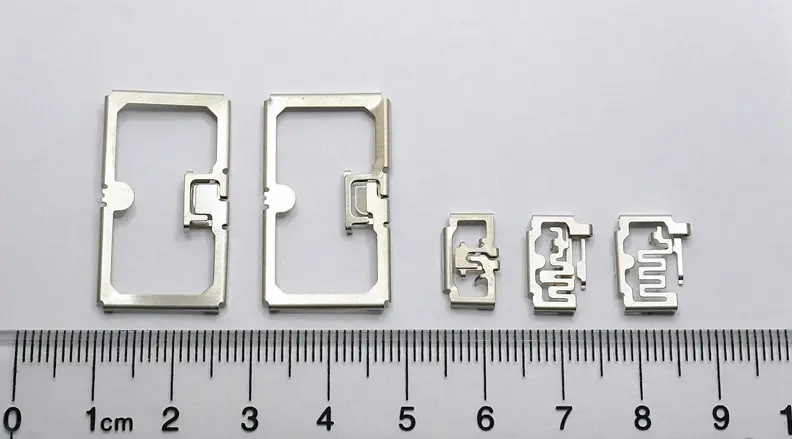

Five omni antennas arranged side by side above a ruler, which measures the length from 0 to 10 cm.
Note: Click on Part Number for corresponding data sheet.
Part NumberDimensions (mm)868 MHz915 MHz2.4 GHz5 GHz6 GHz
RAC0086830.0 x 16.9 x 1.9X
RAC0091530.0 x 16.9 x 1.9X
RAC0002412.5 x 7.2 x 1.9X
RAC0024513.0 x 8.8 x 2.0XX
RAC0245613.0 x 8.8 x 2.0XXX

Many of the most demanding wireless applications rely on external antennas to achieve the required performance. External antennas can be costly, a susceptible failure point, and lead to unattractive enclosure designs. CEL is bringing a family of innovative, metamaterial, PCB mount antennas to market that will deliver the performance of external antennas while keeping the antenna inside the product housing. With industry leading efficiency and minimal input rejection, these new antennas provide the highest performance in a miniature footprint.

Press Release

Introducing Omni-XR Antennas
